AV Cable Types Explained: HDMI, CAT6, Fiber, XLR, RCA, and More

In the rapidly evolving landscape of professional audio visual technology, understanding the various Audio Visual (AV) Cable types represents fundamental knowledge for AV integrators, system designers, and technical consultants. From HDMI cables dominating digital video transmission to fiber optic solutions enabling long-distance connectivity, each cable type serves specific purposes within commercial AV installations, broadcast environments, and enterprise collaboration spaces.

The essential AV cable types every professional should understand include: HDMI for universal digital video/audio, Cat6/Cat6a for network-based AV and HDBaseT, fiber optic cables for long-distance and high-bandwidth applications, XLR for professional balanced audio, RCA for consumer-grade connections, SDI coaxial for broadcast workflows, DisplayPort for computer displays, USB cables for data and video, and speaker cables for audio amplification. Choosing the best Audio Visual (AV) Cable requires understanding signal types, distance requirements, bandwidth specifications, environmental factors, and application-specific needs to ensure optimal system performance and long-term reliability.

This comprehensive guide provides technical specifications, practical applications, and selection criteria for each major cable type, empowering AV professionals to make informed decisions that deliver exceptional installation quality and client satisfaction in May 2026 and beyond.

Key Takeaways

• HDMI 2.1 remains the dominant standard for digital video/audio transmission, supporting 8K@60Hz with 48 Gbps bandwidth and universal device compatibility
• Cat6a cabling serves dual purposes in modern AV systems: 10GBASE-T networking for AV-over-IP and HDBaseT transmission up to 100 meters
• Fiber optic cables provide unlimited bandwidth potential, EMI immunity, and multi-kilometer distances, making them essential for campus installations and high-performance applications
• XLR cables deliver professional-grade balanced audio with superior noise rejection, critical for live sound, recording studios, and commercial audio systems
• RCA cables persist in legacy installations and consumer equipment integration, though professional installations favor balanced connections
• Cable selection must consider signal type (analog/digital), distance limitations, bandwidth requirements, environmental conditions, and total cost of ownership
• Proper connector termination, cable management, and testing protocols determine installation success more than cable specifications alone
• Hybrid cable systems combining multiple signal types reduce installation complexity and labor costs in professional installations
• AI-powered cable management tools and predictive maintenance systems are transforming how AV systems monitor and optimize cable infrastructure performance
• Understanding cable distance charts and bandwidth limitations prevents costly specification errors during system design phase

What Are AV Cables?

Audio Visual (AV) Cables are specialized transmission media designed to transport electrical signals or optical light pulses carrying video information, audio data, control commands, and in some cases, electrical power between source devices and destination equipment within audio visual systems. Unlike general-purpose wiring, professional AV cables incorporate precise engineering including impedance matching, electromagnetic shielding, signal conditioning, and environmental protection to maintain signal integrity across various installation scenarios.

Core Functions of AV Cables

Signal Transmission Categories:

• Video signals: Analog (composite, component) or digital (HDMI, DisplayPort, SDI)

• Audio signals: Analog (line-level, microphone-level, speaker-level) or digital (AES/EBU, S/PDIF, Dante)

• Control signals: Serial protocols (RS-232, RS-485), network-based (IP control), infrared/RF

• Power delivery: PoE (Power over Ethernet), USB Power Delivery, HDBaseT power

Types of AV Cables Explained

HDMI Cables (High-Definition Multimedia Interface)

HDMI represents the ubiquitous standard for digital audio/video transmission in professional and consumer environments, carrying uncompressed video, multi-channel audio, and control data through a single cable connection.

Technical Specifications:

HDMI 2.1 (Current Standard)

• Bandwidth: 48 Gbps supporting 8K@60Hz or 4K@120Hz

• Audio: Up to 32 channels of uncompressed audio, eARC for Dolby Atmos

• Features: Dynamic HDR, Variable Refresh Rate (VRR), Quick Frame Transport (QFT)

• Distance: 5-7 meters passive, 15-30 meters active, 100+ meters via extenders

Applications:

• Corporate presentation systems and conference rooms

• Digital signage networks with media players

• Home theater and entertainment installations

• Educational technology and classroom displays

Cable Types:

• Standard HDMI: 5-meter passive transmission

• Active HDMI: Built-in signal amplification for 15-30 meters

• Fiber Optic HDMI: Hybrid cables reaching 100+ meters

• Certified Premium HDMI: ATC-tested for guaranteed performance

Cat5e/Cat6/Cat6a Cables (Category Twisted Pair)

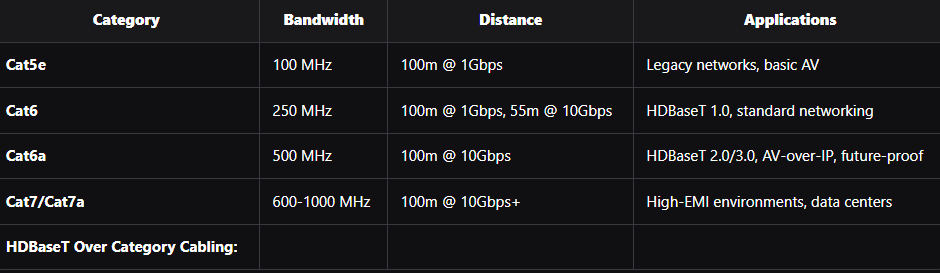

Category cabling serves dual critical roles in modern AV infrastructure: traditional network connectivity for AV-over-IP systems and specialized AV transmission via HDBaseT technology.

• HDBaseT 3.0: Transmits 10K video, audio, Ethernet, control, power over Cat6a

• 100-meter range: Without signal degradation

• PoE support: Up to 100W power delivery

• Cost-effective: Leverages structured cabling standards

AV-over-IP Applications:

• Enterprise video distribution across campus networks

• IPTV systems in hospitality and healthcare

• Dante audio networking for professional sound

• Control system backhaul for centralized management

Fiber Optic Cables

Fiber optic technology utilizes light transmission through glass or plastic fibers, offering unmatched bandwidth, extreme distances, and complete immunity to electromagnetic interference.

Fiber Types:

Single-Mode Fiber (SMF)

• Core diameter: 9 microns

• Distance: 10-40 kilometers without signal regeneration

• Applications: Campus backbones, broadcast links, long-haul connections

• Wavelength: 1310nm or 1550nm laser transmission

Multi-Mode Fiber (MMF)

• Core diameter: 50 or 62.5 microns

• Grades: OM3 (300m @ 10Gbps), OM4 (550m @ 10Gbps), OM5 (440m @ 40Gbps)

• Applications: Building backbones, data center interconnects

• Wavelength: 850nm or 1300nm LED/laser

AV Applications:

• 4K/8K video distribution in stadiums and arenas

• Broadcast studio infrastructure with SDI over fiber

• Conference room extensions exceeding copper limitations

• Medical imaging requiring uncompressed transmission

Advantages:

• Unlimited bandwidth scalability through electronics upgrades

• Zero signal degradation over specified distances

• Electrical isolation preventing ground loops

• Lightweight and compact compared to copper equivalents

XLR Cables (Professional Audio)

XLR cables deliver balanced audio connections using three-conductor design with superior noise rejection, making them the professional standard for microphones, line-level signals, and digital audio in commercial installations.

Technical Specifications:

• Conductors: Two signal wires plus ground/shield

• Balanced transmission: Common-mode noise rejection up to 60dB

• Connector: 3-pin XLR (standard), 5-pin XLR (stereo/DMX), 7-pin XLR (specialty)

• Maximum distance: 100+ meters for line-level, 30-50 meters for microphone-level

Applications:

• Stage microphones and vocal systems

• Professional mixing console connections

• Powered speaker and amplifier links

• AES/EBU digital audio transmission

• DMX512 lighting control (using XLR connectors)

Cable Construction:

• Star-quad design: Enhanced EMI rejection in electrically noisy environments

• Oxygen-free copper: Optimal signal conductivity

• Flexible jacketing: Touring-grade cables for live sound

• Neutrik connectors: Gold-plated contacts with strain relief

RCA Cables (Composite/Component/Line Audio)

RCA connections persist in consumer equipment, legacy installations, and specific professional applications despite being largely superseded by balanced alternatives in modern commercial systems.

Applications:

• Consumer audio equipment integration

• Composite video (single yellow RCA) for legacy sources

• Component video (red/green/blue RCA) for analog HD

• Stereo audio (red/white RCA) for unbalanced connections

• S/PDIF digital audio over coaxial RCA

Limitations:

• Unbalanced design: Susceptible to noise and interference

• Short distances: 3-5 meters recommended maximum

• No locking: Friction-fit connectors prone to accidental disconnection

Professional Alternatives:

• Replace RCA audio with XLR or TRS for balanced connections

• Replace composite video with HDMI or SDI

• Use RCA-to-XLR transformers when interfacing consumer equipment

SDI Cables (Serial Digital Interface)

SDI technology transmits uncompressed digital video over 75-ohm coaxial cables with BNC connectors, representing the broadcast industry standard for professional video production.

SDI Standards:

• 12G-SDI: 11.88 Gbps for 4K@60Hz

• 6G-SDI: 6 Gbps for 4K@30Hz

• 3G-SDI: 2.97 Gbps for 1080p@60Hz

• HD-SDI: 1.485 Gbps for 1080i

Advantages:

• Zero-latency: Uncompressed transmission with no encoding delay

• Long distances: 100 meters on quality coaxial (12G-SDI)

• Locking connectors: BNC bayonet prevents accidental disconnection

• Proven reliability: Decades of broadcast use

Applications:

• Broadcast production studios and control rooms

• Live event video with camera-to-switcher feeds

• Medical imaging and surgical displays

• Video routing systems in post-production facilities

DisplayPort Cables

DisplayPort serves as the VESA-standardized interface for computer-to-display connections, offering high bandwidth, multi-stream transport, and adaptive sync technologies.

DisplayPort 2.0 Specifications:

• Bandwidth: 80 Gbps (UHBR 20)

• Resolution: Supports 16K@60Hz or dual 8K@60Hz

• MST capability: Daisy-chain up to 4 displays from single output

• Adaptive Sync: FreeSync and G-Sync Compatible support

Applications:

• Professional workstations with multi-monitor setups

• Gaming displays requiring high refresh rates

• Digital signage with MST distribution

• Medical imaging workstations

Cable Types:

• Standard DisplayPort: Full-size 20-pin connector

• Mini DisplayPort: Compact form factor

• USB-C with DP Alt Mode: Unified connectivity

USB Cables (Universal Serial Bus)

USB technology extends beyond data connectivity to include video transmission, device control, and power delivery in modern AV systems.

USB Standards for AV:

USB 3.2 Gen 2 (USB-C)

• Data rate: 10 Gbps

• Video: DisplayPort Alt Mode for 4K@60Hz

• Power: USB PD 3.0 up to 100W (PD 3.1: 240W)

USB4

• Data rate: 40 Gbps

• Thunderbolt 4 compatible

• Dual 4K displays or single 8K

Applications:

• Video conferencing cameras and USB capture devices

• Laptop docking stations with single-cable connectivity

• USB audio interfaces and DSP processors

• Control system processors and touch panels

Speaker Cables

Speaker cables carry high-current amplified audio signals from power amplifiers to passive loudspeakers, requiring low-resistance conductors to minimize power loss.

Technical Specifications:

• Wire gauge: AWG 12-16 for most commercial applications

• Conductor material: Oxygen-free copper (OFC) for optimal conductivity

• Maximum distance: Varies by gauge and speaker impedance

• Jacket: CL2/CL3 rated for in-wall installation

Applications:

• Ceiling speaker distribution in commercial spaces

• Stage monitor and main PA connections

• Home theater and multi-room audio systems

• Background music in retail and hospitality

Distance Calculations:

• 8-ohm speakers: AWG 16 to 50 feet, AWG 14 to 80 feet, AWG 12 to 125 feet

• 4-ohm speakers: Halve above distances or use next larger gauge

AV Cable Connector Types Explained

HDMI Connectors

Type A (Standard HDMI)

• 19-pin configuration: Most common display and source connector

• Friction-fit design: No native locking (aftermarket options available)

• Applications: Projectors, displays, media players, laptops

Type C (Mini HDMI) and Type D (Micro HDMI)

• Compact devices: Tablets, cameras, portable equipment

• Full functionality: Identical capabilities to Type A

RJ45 Connectors (8P8C Modular)

Standard Ethernet

• 8-position 8-contact: Category cable termination

• T568A/T568B: Industry-standard wiring schemes

• Shielded variants: Required for Cat6a/Cat7 applications

Industrial RJ45

• IP67 rating: Harsh environment protection

• Locking mechanisms: Field-deployable secure connections

BNC Connectors (Bayonet Neill-Concelman)

Standard BNC

• 75-ohm impedance: Video and RF applications

• Bayonet lock: Quarter-turn secure connection

• Solder or crimp: Termination options

HD-BNC

• Improved performance: 12G-SDI compatible

• Enhanced shielding: Reduced return loss

XLR Connectors

3-Pin XLR

• Pin 1: Ground/shield

• Pin 2: Positive/hot signal

• Pin 3: Negative/cold signal

• Locking collar: Secure professional connection

Neutrik XX Series

• Gold-plated contacts: Optimal conductivity

• Chuck-type strain relief: Cable protection

• Professional standard: Touring and installed sound

Fiber Optic Connectors

LC (Lucent Connector)

• Small form factor: High-density applications

• Push-pull mechanism: Tool-free connection

• Duplex configuration: Transmit/receive pairs

SC (Subscriber Connector)

• Push-pull design: Easy connection/disconnection

• Larger than LC: Lower density but robust

MPO/MTP

• Multi-fiber array: 12 or 24 fibers in single connector

• High-density backbone: Data centers and campus links

USB Connectors

USB-A

• Rectangular shape: Traditional USB connection

• Host-side connector: Computers and chargers

USB-C

• Reversible design: No wrong orientation

• 24-pin configuration: Supports USB 3.2, USB4, DisplayPort Alt Mode, Power Delivery

• Universal adoption: Modern laptops and devices

How to Choose the Right AV Cable

Selection Framework

Step 1: Identify Signal Type

Video Signals:

• Digital uncompressed: HDMI, DisplayPort, SDI

• Network-based: AV-over-IP, HDBaseT

• Analog (legacy): Composite, component, VGA

Audio Signals:

• Balanced professional: XLR, TRS

• Unbalanced consumer: RCA, TS

• Digital: AES/EBU, S/PDIF, Dante

• Speaker level: High-current speaker cables

Step 2: Determine Distance Requirements

Short Runs (0-10 meters)

• HDMI passive cables: Most video/audio applications

• USB cables: Cameras and peripherals

• RCA cables: Consumer equipment integration

Medium Runs (10-100 meters)

• HDBaseT over Cat6a: Conference room extensions

• 12G-SDI coaxial: Broadcast connections

• XLR cables: Professional audio distribution

• Active HDMI: With signal amplification

Long Runs (100+ meters)

• Fiber optic cables: Campus and building backbones

• AV-over-IP: Over network infrastructure

• Fiber SDI transceivers: Broadcast long-haul

Step 3: Assess Bandwidth Requirements

Resolution-Bandwidth Correlation:

• 1080p@60Hz: 4-5 Gbps (HDMI 1.4, Cat6)

• 4K@30Hz: 8 Gbps (HDMI 1.4, 6G-SDI)

• 4K@60Hz: 18 Gbps (HDMI 2.0, 12G-SDI, HDBaseT 2.0)

• 8K@60Hz: 48 Gbps (HDMI 2.1, DisplayPort 2.0, fiber)

Step 4: Consider Environmental Factors

Indoor Plenum Spaces:

• CMP-rated cables: Required for air-handling areas

• Fire safety compliance: NEC Article 800 standards

Outdoor Installations:

• UV-resistant jackets: Sunlight exposure protection

• Waterproof connectors: IP67/IP68 ratings

• Direct burial: Armored cables for underground routing

High-EMI Environments:

• Shielded cables: Manufacturing facilities, hospitals

• Fiber optic alternatives: Complete EMI immunity

Step 5: Budget and Total Cost Analysis

Cable Cost Per Meter:

• HDMI: $5-30 depending on specification

• Cat6a: $1-3 for bulk cable, terminated: $5-15

• Fiber optic: $5-50 based on type and termination

• XLR: $8-25 for professional quality

• SDI coax: $8-20 for quality RG6

Supporting Infrastructure:

• HDMI extenders: $200-800 per endpoint

• HDBaseT transmitter/receiver: $400-1,200 per link

• Fiber transceivers: $500-2,000 per link

• Network switches (AV-over-IP): $1,000-10,000 depending on port count

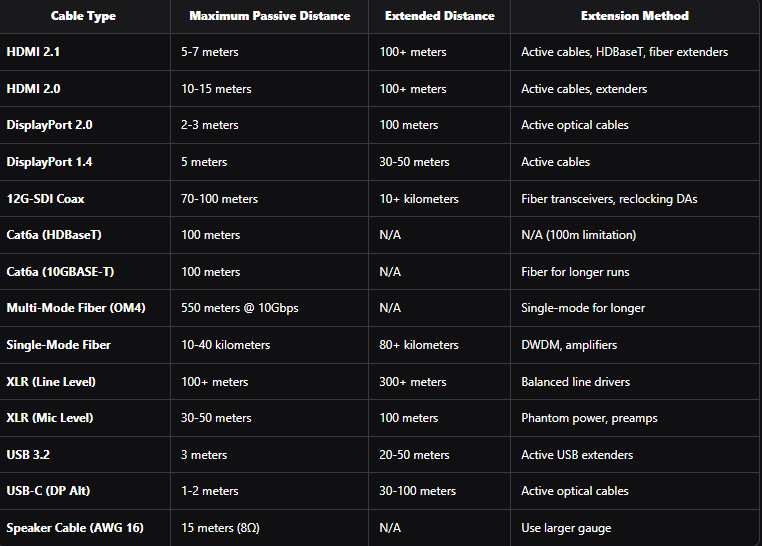

AV Cable Distance Limits Chart

Common AV Cable Problems and Solutions

Problem 1: No Signal or Intermittent Connection

Symptoms:

• Blank display with "No Signal" message

• Flickering or intermittent video

• Audio dropouts or crackling

Common Causes:

• Cable exceeding distance specification

• Damaged or worn connectors

• Poor quality cables failing bandwidth requirements

• Loose connections at either end

Solutions: ✅ Verify cable length within manufacturer specifications ✅ Inspect connectors for physical damage or bent pins ✅ Replace with certified cables meeting resolution/bandwidth needs ✅ Use active electronics (extenders, repeaters) for borderline distances ✅ Clean connectors with isopropyl alcohol

Problem 2: Electromagnetic Interference (EMI)

Symptoms:

• Horizontal lines in video (power line frequency)

• Buzzing or humming in audio (ground loops)

• Random artifacts or screen noise

Common Causes:

• Unshielded or poorly shielded cables

• Cables routed parallel to power lines

• Ground loop between equipment

• High-EMI environment (near motors, fluorescent lights)

Solutions: ✅ Use shielded cables with proper grounding ✅ Separate signal cables from power cables by 300mm minimum ✅ Install ground loop isolators on audio connections ✅ Convert to balanced connections (XLR) where possible ✅ Use fiber optic cables for complete EMI immunity

Problem 3: HDCP Handshake Failures

Symptoms:

• Protected content won't display

• Pink/purple screen or flickering

• Works with some sources but not others

Common Causes:

• Non-HDCP compliant cables or equipment

• Long cable runs degrading HDCP signals

• Distribution amplifiers without HDCP support

Solutions: ✅ Use Certified Premium HDMI cables ✅ Update firmware on all devices ✅ Replace HDCP-non-compliant equipment ✅ Add HDMI extender with EDID management

Problem 4: Audio Hum in XLR Systems

Symptoms:

• 60Hz hum in audio output

• Hum increases/decreases with dimmer switches or equipment power

Common Causes:

• Ground loops from multiple equipment grounds

• Phantom power issues with incompatible equipment

• Unbalanced-to-balanced conversion without proper transformer

Solutions: ✅ Ensure single-point grounding of audio system ✅ Use ground lift adapters on problematic connections ✅ Install balanced-to-balanced transformers for isolation ✅ Check phantom power compatibility on all mic lines

Problem 5: Network Congestion (AV-over-IP)

Symptoms:

• Video compression artifacts

• Frame drops or stuttering

• Audio/video sync issues

Common Causes:

• Insufficient network bandwidth

• Improper VLAN configuration

• Missing QoS settings

• Multicast routing errors

Solutions: ✅ Implement dedicated AV VLAN separated from data traffic ✅ Configure IGMP snooping on managed switches ✅ Set QoS priority for AV traffic ✅ Upgrade to 10 Gigabit infrastructure for 4K distribution ✅ Monitor network utilization with diagnostic tools

Future Trends in AV Cabling

AI-Powered Cable Management

Predictive Maintenance Systems

• Machine learning algorithms analyze signal quality metrics over time

• Anomaly detection identifies degrading cables before complete failure

• Automated alerts schedule preventive replacement during maintenance windows

Intelligent Cable Selection Tools

• AI recommendation engines suggest optimal cable types based on:

• Project parameters and distance requirements

• Historical performance data from similar installations

• Environmental factors and budget constraints

Automated Troubleshooting

• AI diagnostics correlate symptoms with probable causes

• Remote cable testing via network-connected equipment

• Self-healing systems automatically switch to backup paths

Next-Generation Standards

HDMI 3.0 (Expected 2027)

• 100+ Gbps bandwidth: Support 16K displays

• Enhanced AI features: Intelligent content optimization

• Improved cable certification: Mandatory testing protocols

USB4 Version 2.0

• 80 Gbps: Double current USB4 bandwidth

• DisplayPort 2.1 integration: Dual 8K displays over USB-C

Cat8 Adoption

• 25/40GBASE-T: Future-proof network AV distribution

• 2000 MHz bandwidth: Short-run (<30m) high-performance

Wireless Convergence

Wi-Fi 7 (802.11be)

• 30+ Gbps: Enables reliable wireless 4K in conference rooms

• Reduced latency: Under 5ms for real-time applications

WiGig 2.0

• 60 GHz band: Short-range high-bandwidth cable replacement

• Multi-gigabit speeds: Wireless HDMI and DisplayPort

5G/Private 5G

• Campus-scale AV: Building-to-building wireless distribution

• Ultra-low latency: Live event and broadcast applications

Sustainability Initiatives

Eco-Friendly Materials

• Recycled copper: Environmental impact reduction

• Bio-based plastics: Sustainable jacketing alternatives

• LSZH standard: Low-smoke zero-halogen becoming default

Circular Economy

• Cable recycling programs: Manufacturer take-back initiatives

• Refurbishment services: Testing and re-certification for reuse

• Modular designs: Replaceable connectors extending cable life

Frequently Asked Questions

Q: What's the difference between HDMI, DisplayPort, and SDI for professional video applications?

A: These three digital video standards serve different professional niches: HDMI offers universal device compatibility with laptops, media players, and commercial displays, making it ideal for corporate presentations and digital signage where consumer device integration is priority. Maximum passive distance is 5-7 meters for HDMI 2.1, but active cables and HDBaseT extenders solve long-distance needs. DisplayPort excels in computer-to-monitor connections, providing daisy-chaining capability (Multi-Stream Transport) for multi-display workstations, locking connectors, and high refresh rates beneficial for CAD, 3D rendering, and gaming applications. However, limited laptop adoption (primarily workstations) and short passive distances (2-3m for DisplayPort 2.0) restrict broader use. SDI remains the broadcast industry gold standard, delivering zero-latency uncompressed video over 100-meter coaxial runs with locking BNC connectors essential for live production, broadcast studios, and mission-critical applications requiring frame-accurate timing. The trade-off is higher equipment cost, no consumer device compatibility, and limited to professional workflows. Choose HDMI for universal compatibility, DisplayPort for multi-monitor computing, and SDI for broadcast production and live events.

Q: When should I use fiber optic cables instead of copper cables for AV installations?

A: Fiber optic cables become the preferred choice in five specific scenarios: 1) Distance requirements exceeding copper limitations – when cable runs exceed 100 meters (HDBaseT/Cat6a limit) or 70-100 meters (12G-SDI limit), fiber enables multi-kilometer transmission without signal degradation or repeaters; 2) High-EMI environments – manufacturing facilities, hospitals, power substations, or installations near heavy machinery where electromagnetic interference compromises copper signals, since fiber uses light transmission providing complete EMI immunity; 3) Extreme bandwidth requirements – 8K video, multiple 4K streams, or future-proof infrastructure where fiber's unlimited bandwidth supports technology upgrades through endpoint electronics without cable replacement; 4) Electrical isolation – preventing ground loops between buildings or floors with different electrical systems, as fiber provides galvanic isolation eliminating hum, buzz, and safety hazards; 5) Security-sensitive installations – fiber is impossible to tap without detection, unlike copper which can be intercepted electromagnetically, making it ideal for government, financial, and high-security facilities. The primary trade-off is higher upfront cost ($500-2,000 per fiber link with transceivers) and specialized termination requiring fusion splicing equipment and trained technicians, but total cost of ownership often favors fiber for long-distance or high-performance applications when lifecycle costs and upgrade flexibility are considered.

Q: How do I choose between Cat6 and Cat6a cabling for AV-over-IP and HDBaseT installations?

A: The decision between Cat6 and Cat6a cabling depends on application requirements and future-proofing strategy: Choose Cat6a (recommended for 2026 installations) when: 1) Deploying HDBaseT 2.0/3.0 requiring full 100-meter transmission at 4K@60Hz or higher, as Cat6 limitations may reduce effective distance to 70 meters; 2) Implementing 10GBASE-T networking for AV-over-IP systems requiring 10 Gigabit Ethernet to full 100 meters (Cat6 limited to 55 meters at 10 Gbps); 3) High-density cable bundles where Cat6a's superior alien crosstalk performance prevents signal interference between adjacent cables; 4) Future-proofing for 10-15 year system lifecycle, as Cat6a supports emerging standards including 25GBASE-T for short runs; 5) Budget allows 20-30% premium for Cat6a ($0.40-0.60 per foot) over Cat6 ($0.30-0.45 per foot). Choose Cat6 when: 1) Budget constraints critical and distances under 55 meters for 10Gbps or 70 meters for HDBaseT; 2) Deploying HDBaseT 1.0 (1080p) sufficient for application needs; 3) Retrofit scenarios with existing Cat6 infrastructure. However, given the marginal cost difference and significantly longer relevance, Cat6a represents the professional standard for new AV installations in May 2026, with Cat6 relegated to budget-conscious or short-distance applications. Always use certified cable meeting TIA-568-C.2 standards and test with Fluke DSX or equivalent to ensure performance compliance.

Q: What are the best practices for terminating and testing professional AV cables?

A: Professional cable termination and testing follow rigorous protocols: For HDMI/DisplayPort: Use factory-terminated cables whenever possible, as field termination requires specialized equipment and expertise rarely justified for individual cables. When field termination necessary (custom lengths), use certified connectors and follow manufacturer procedures precisely, then test with HDMI analyzer (Murideo Fresco, AJA FS-HDR) verifying 4K@60Hz transmission at full cable length with all audio channels and HDR support. For Category cabling (Cat6a): Use quality RJ45 connectors matching cable shielding (shielded cable requires shielded connectors), follow T568A or T568B wiring standards consistently, maintain minimal conductor untwist (<13mm), and test every cable with Fluke DSX-5000/8000 or NetAlly LinkRunner certifying insertion loss, return loss, NEXT, PSNEXT, alien crosstalk, meeting TIA-568-C.2 standards. For XLR audio: Use Neutrik or Switchcraft connectors with gold-plated contacts, follow pin 1 (ground), pin 2 (hot/+), pin 3 (cold/-) wiring convention, provide strain relief protecting cable entry, and test continuity and proper pin assignment with cable tester, then verify balanced operation with audio multimeter measuring shield continuity without ground loops. For fiber optic: Requires specialized training and equipment – use fusion splicing for permanent terminations providing <0.1dB loss, or mechanical splicing/connectors for field termination (higher loss), test with OTDR (Optical Time Domain Reflectometer) measuring insertion loss, return loss, splice quality, ensuring performance meets specification (<0.5dB per connector, <0.3dB per splice). General practices: Label both cable ends before concealment, document test results with serial numbers and pass/fail status, photograph cable routing for as-built documentation, and provide certification reports to client ensuring warranty compliance and future troubleshooting reference.

Q: How can I prevent and troubleshoot ground loop hum in audio systems?

A: Ground loop hum occurs when multiple ground paths exist between interconnected equipment creating current flow that manifests as 60Hz buzz (North America) or 50Hz hum (Europe/Asia). Prevention strategies: 1) Design single-point grounding – ground all audio equipment at one central location (typically main mixer or rack ground), avoiding multiple ground connections that create loops; 2) Use balanced connections – XLR cables with proper balanced wiring provide common-mode rejection, canceling interference including ground loop currents, making them superior to unbalanced RCA; 3) Install isolation transformers – Jensen or Radial audio transformers provide galvanic isolation between equipment without compromising audio quality, breaking ground loops while maintaining signal integrity; 4) Separate audio power – dedicated electrical circuits for audio equipment reduce interference from other building loads, and ensure phase consistency (all equipment on same electrical phase); 5) Proper cable routing – maintain 300mm separation between audio cables and power cables, avoiding parallel runs that induce interference. Troubleshooting existing hum: 1) Identify source – disconnect equipment one-by-one to isolate which connection introduces hum; 2) Use ground lift adaptors – temporarily lift ground on AC power (for testing only – not permanent solution) to identify if power ground creates loop, then address with proper grounding strategy; 3) Check phantom power – ensure microphone preamps requiring phantom power are compatible, and non-phantom devices aren't damaged by 48V phantom; 4) Install hum eliminators – Ebtech Hum X or similar devices for AC power, or audio ground loop isolators for signal paths; 5) Convert to balanced – replace unbalanced RCA connections with balanced XLR using DI boxes or active converters for consumer equipment. Never defeat safety grounds permanently – always address root cause rather than eliminating protective grounding that prevents electrical shock hazards.

Q: What's the future of AV cabling with the rise of wireless technologies and AV-over-IP?

A: While wireless technologies and AV-over-IP are transforming certain AV applications, physical cabling remains essential and will continue evolving rather than disappearing: Wireless reality in 2026: Wi-Fi 7 and WiGig 2.0 enable reliable wireless 4K in conference rooms and short-distance applications (<10 meters), excellent for BYOD scenarios and collaboration spaces requiring flexibility, but wireless suffers from shared spectrum congestion, interference, latency variability (typically 30-100ms), and limited simultaneous streams, making it supplementary rather than replacement for wired connections in professional installations. AV-over-IP reality: SDVoE, Dante, and proprietary AV-over-IP solutions leverage 10 Gigabit Ethernet infrastructure, providing unprecedented flexibility for enterprise-scale deployments (50+ endpoints), enabling any-source-to-any-display routing and centralized management. However, AV-over-IP requires sophisticated network design, managed switches, VLAN configuration, QoS implementation, and IT expertise, with equipment costs ($800-2,000 per encoder/decoder) exceeding point-to-point solutions for small installations. The future landscape: Hybrid architectures combining wired, wireless, and network-based solutions will dominate, with fiber optic backbones providing unlimited bandwidth for campus interconnection, Cat6a/Cat7 infrastructure supporting 10/25 Gigabit AV-over-IP, HDMI/HDBaseT for table-to-display connections in individual rooms, and wireless for mobile device and collaboration applications. Cable evolution includes: HDMI 3.0 (100+ Gbps), USB4 2.0 (80 Gbps), Cat8 for high-density short runs, improved fiber termination methods reducing installation costs, and AI-powered cable management with predictive maintenance. Physical cabling advantages of zero latency, guaranteed bandwidth, security, and reliability ensure it remains foundational for professional AV systems requiring mission-critical performance, with wireless and IP technologies providing complementary flexibility rather than complete replacement. Smart investment strategy: Install robust physical infrastructure (conduit, fiber backbones, Cat6a horizontal) enabling technology flexibility throughout building lifecycle (30-50 years), while leveraging wireless and IP solutions for applications demanding maximum flexibility and rapid reconfiguration.

Q: What cable specifications should I prioritize for a conference room that will last 10+ years?

A: Future-proofing conference room cabling for 10+ year lifecycle requires strategic specifications balancing current functionality with anticipated technology evolution: Video cabling: Specify HDMI 2.1 minimum (48 Gbps) even for current 4K needs, as this supports 8K displays and 4K@120Hz that may emerge during system lifespan. For table-to-display distances exceeding 15 meters, deploy HDBaseT 3.0-compatible Cat6a infrastructure providing 10K resolution support and 100W power delivery capability. Install at least one USB-C input with USB 3.2 Gen 2 (10 Gbps), DisplayPort 1.4 Alt Mode, and USB PD 3.0 (100W) supporting modern laptop connectivity and single-cable operation. Network infrastructure: Deploy Cat6a cabling (not Cat6) to every room supporting full 100-meter 10GBASE-T for current/future AV-over-IP, providing headroom for 4K/8K network distribution and Dante audio. Install OM4 multimode fiber (or OS2 singlemode) for backbone connections between floors/buildings, as fiber bandwidth is effectively unlimited with upgrades requiring only endpoint electronics. Audio cabling: Run Cat6a to ceiling microphone locations supporting both analog audio (via audio-over-Cat adapters) and Dante audio networking, providing flexibility for technology evolution. Include XLR runs to rack locations for professional audio equipment that will persist throughout system lifecycle. Infrastructure design: Install 2-inch conduit (minimum) between conference room and equipment closet maintaining 40% fill maximum, enabling cable replacement without renovation. Use floor boxes and wall plates with modular inserts allowing connector type changes without replacing enclosures. Pull 25-50% spare capacity during initial installation (e.g., 4 cables when 3 required), since labor costs for cable pulling far exceed material costs, and access becomes extremely expensive after wall closure. Documentation: Create comprehensive as-built documentation (CAD drawings, photographs, spreadsheets) and digital archiving, ensuring future modifications proceed efficiently even after staff turnover. Testing: Perform complete certification of all cabling generating test reports verifying performance specifications and providing warranty compliance. This future-proof approach adds 15-25% to initial costs but avoids disruptive renovations costing 10-20x the initial savings when performed in occupied spaces within 5-7 years.

Conclusion

Understanding the diverse landscape of Audio Visual (AV) Cable technologies represents essential expertise for AV integrators, system designers, and technical consultants navigating the complex requirements of modern audio visual installations. From HDMI's universal digital connectivity to fiber optic's extreme bandwidth and distance capabilities, from XLR's professional audio excellence to Cat6a's versatile support for both networking and specialized AV transmission, each cable type offers distinct advantages serving specific application requirements within commercial environments.

The optimal cable selection extends beyond simple technical specifications to encompass comprehensive understanding of signal types, distance limitations, bandwidth requirements, environmental conditions, budget constraints, and future technology roadmaps. Successful installations leverage appropriate cable technologies for each application scenario: HDMI for universal device compatibility in conference rooms, HDBaseT over Cat6a for medium-distance video extension, fiber optics for campus backbones and EMI-immune installations, XLR for professional audio distribution, and AV-over-IP architectures for enterprise-scale flexibility.

As we progress through May 2026, the AV cabling landscape continues evolving with next-generation standards (HDMI 3.0, USB4 2.0, Wi-Fi 7), AI-powered management tools enabling predictive maintenance and intelligent troubleshooting, and increasing convergence between traditional AV and IT infrastructure. However, the fundamental principles remain constant: quality materials, proper installation techniques, comprehensive testing protocols, and thorough documentation separate professional installations delivering years of reliable service from budget implementations generating endless support calls and client dissatisfaction.

By mastering the technical characteristics, practical applications, and common challenges associated with each Audio Visual (AV) Cable type, AV professionals position themselves to design and deploy robust infrastructure that meets current operational needs while accommodating future technological innovations. Whether specifying cables for a small huddle space or a multi-building corporate campus, understanding these foundational technologies ensures optimal system performance, user satisfaction, and long-term value for clients investing in professional audio visual solutions.
