AV Network Setup Checklist: Everything Integrators Need Before Deployment
What do AV integrators need before deploying a network-based audiovisual system? The complete answer: A comprehensive pre-deployment checklist covering network infrastructure assessment, equipment inventory, configuration documentation, testing tools, client requirements validation, IT coordination protocols, security compliance verification, and contingency planning—ensuring every technical, logistical, and operational requirement is met before installation begins.
Successful AV network deployments share characteristics with well-planned residential installations. Just as a detailed home ethernet wiring diagram documents every cable run, switch location, outlet placement, and patch panel connection before the first wire is pulled, professional AV network installations require meticulous pre-deployment planning documenting network topology, VLAN assignments, IP addressing schemes, and equipment configurations. Understanding Home Network Wiring fundamentals—including structured cabling principles, network hierarchy, and signal path documentation—provides the foundation for enterprise-scale AV network projects where stakes are higher, systems are more complex, and there's zero tolerance for installation errors or post-deployment troubleshooting marathons.
For AV integrators, system designers, and consultants, the difference between profitable, smooth deployments and costly problem projects lies entirely in pre-deployment preparation. This comprehensive checklist covers every critical element—from initial site surveys through final acceptance testing—providing a battle-tested framework for consistently delivering professional AV network installations on time, on budget, and exceeding client expectations.
Key Takeaways
Pre-deployment checklists reduce installation errors by 70%+ and dramatically shorten commissioning time
Network infrastructure validation before equipment arrival prevents costly delays and rework
Proper IT coordination eliminates 90% of common network connectivity issues during deployment
Detailed configuration documentation enables efficient troubleshooting and future system expansion
Testing equipment and diagnostic tools must be verified functional before leaving for installation
Client sign-off on design documents and requirements protects against scope creep
Security compliance verification before deployment prevents post-installation audit failures
Backup plans for critical components reduce risk of single-point failures delaying projects
AI-powered validation tools streamline pre-deployment checks and identify potential issues
Complete documentation packages ensure smooth handoff to operations and support teams
Phase 1: Pre-Project Documentation and Requirements
Client Requirements Documentation Checklist
Before any equipment procurement or network design begins, validate and document all client requirements:
Business Requirements
Primary use cases defined (video conferencing, digital signage, collaboration, training)
User personas identified with technology proficiency levels
Success criteria established with measurable KPIs
Budget constraints documented (equipment, labor, ongoing support)
Timeline expectations realistic and agreed upon
Phasing strategy if multi-stage deployment
Training requirements for end users and support staff
Support model (vendor-maintained, in-house, hybrid) determined
Technical Requirements
Room types and quantities catalogued
User capacity per space documented
Display requirements (size, resolution, quantity per room)
Audio requirements (microphones, speakers, DSP needs)
Video conferencing platforms specified (Zoom, Teams, Webex, etc.)
Content sources identified (BYOD, room PCs, wireless presentation)
Control interface preferences (touch panels, mobile apps, web)
Recording/streaming needs documented
Accessibility requirements (ADA, hearing assistance)
Integration points with existing systems identified
Compliance and Security Requirements
Industry regulations applicable (HIPAA, PCI-DSS, FERPA, etc.)
Corporate security policies obtained
Network security requirements documented (encryption, authentication)
Physical security needs (equipment access, cable security)
Data retention policies for recordings
Privacy requirements for cameras and microphones
Audit logging requirements specified
Design Documentation Checklist
Comprehensive design documentation forms the blueprint for deployment:
System Design Documents
Network topology diagrams (physical and logical)
Equipment rack elevations with all devices positioned
Signal flow diagrams showing all connections
Control system architecture documented

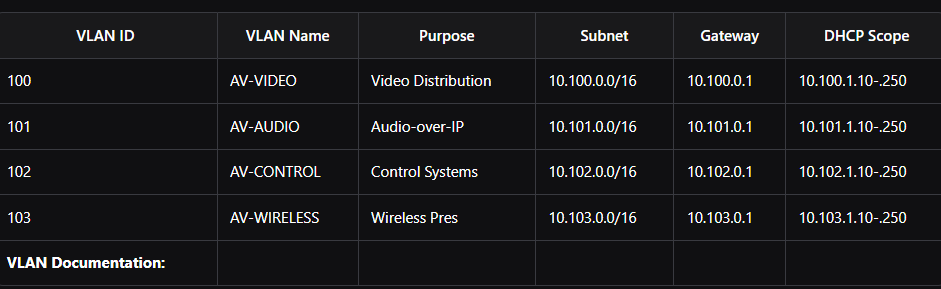

VLAN design with segmentation strategy
IP addressing scheme with complete IP plan
Bandwidth calculations for all streams and services
QoS policies defined and documented
Multicast configuration if applicable
PTP architecture for audio-over-IP systems
Architectural and Physical Documentation
Floor plans with equipment locations marked
Ceiling plans showing device mounting positions
Cable routing paths documented on plans
Conduit schedules if running in conduit
Furniture placement coordinating with AV installation
Power outlet locations marked on plans
Access panel locations for service access
Loading dock and equipment delivery routes confirmed
Equipment Documentation
Bill of materials (BOM) complete and accurate
Equipment cutsheets for all specified devices
Submittal package prepared for client approval
Long-lead items identified with order deadlines
Spare parts inventory defined
Warranty documentation requirements understood
Firmware versions specified and downloaded
Phase 2: Network Infrastructure Assessment
Pre-Deployment Network Survey Checklist
A thorough network assessment prevents 80% of installation-day problems:
Physical Network Infrastructure
Cable plant type verified (Cat5e, Cat6, Cat6a, fiber)
Cable testing performed with certification reports
Patch panel documentation accurate and up-to-date
Switch locations identified and accessible
Rack space availability confirmed for new equipment
Cable routing from IDFs to rooms confirmed clear
Cable lengths measured and within standards (100m copper, distance for fiber)
Conduit fill verified if adding cables to existing conduits
Cable labeling scheme established and documented
As-built drawings obtained and reviewed
Switch and Network Equipment
Switch models and firmware versions documented
Available ports on switches counted and reserved
PoE capacity calculated and verified sufficient
Uplink capacity to distribution/core adequate for AV traffic
Switch configuration access credentials obtained
Change control procedures understood and scheduled
Maintenance windows for switch configuration identified
Backup configurations obtained before making changes
Switch features verified (IGMP, QoS, VLANs, PTP support)
Network Capacity and Performance
Baseline bandwidth measurements taken during peak hours
Latency testing between endpoints and key destinations
Packet loss measured and documented (<0.1% required)
Jitter measurements for real-time traffic
Multicast capability tested if required
Internet bandwidth verified adequate for cloud services
WAN capacity tested for multi-site deployments
Network monitoring tools and access verified
IT Coordination Checklist
IT department collaboration is critical for network-based AV deployments:
Pre-Deployment Meetings
Kickoff meeting scheduled with IT stakeholders
Roles and responsibilities clearly defined
Communication protocols established (email, ticketing, phone)
Escalation procedures documented
On-site support availability confirmed for installation days
After-hours access arrangements made if needed
Network Configuration Coordination
VLAN creation requests submitted and approved
IP address allocations obtained (DHCP scopes or static assignments)
Firewall rules identified and requested
ACL requirements documented and submitted
QoS policies reviewed and configuration planned
Multicast routing configuration coordinated
DNS entries requested for named devices
DHCP options configured if needed (TFTP, time servers)
802.1X exemptions or certificate provisioning arranged
SNMP community strings or monitoring access arranged
Security and Compliance Coordination
Security assessment of AV equipment completed
Vulnerability scanning scheduled post-deployment
Encryption requirements clarified (TLS, SRTP, IPSec)
Certificate management procedures established
Password policies understood and documented
Compliance scanning exclusions requested if needed
Penetration testing scheduled appropriately
Phase 3: Equipment Preparation and Configuration
Equipment Inventory Checklist
Verify all equipment before leaving for installation:
Equipment Receipt and Inspection
All items on BOM received and accounted for
Serial numbers recorded in inventory system
Physical inspection for shipping damage completed
Packaging saved if possible return needed
Accessories and cables verified present
Mounting hardware confirmed included or ordered
Documentation (quick start guides, manuals) available
Power supplies correct voltage and connector type
Replacement units for DOA equipment available
Firmware and Software Preparation
Current firmware versions researched and downloaded
Firmware compatibility between devices verified
Firmware update procedures reviewed
Test update performed on bench before deployment
Rollback procedures understood if update fails
Software licenses activated and keys documented
Control system programs compiled and ready to load
Backup copies of all firmware and software secured
Pre-Configuration and Staging
Pre-configuring equipment before installation saves enormous time:
Network Device Pre-Configuration
IP addresses assigned and programmed
Subnet masks and gateways configured
VLAN tags configured if required
Device names set according to naming convention
SNMP settings configured for monitoring
NTP servers configured for time sync
Administrative passwords set per security policy
User accounts created with appropriate permissions

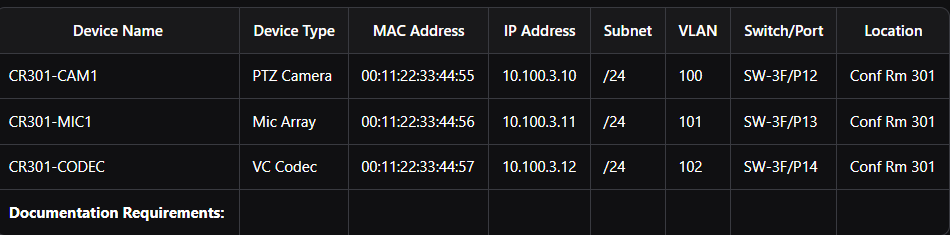

Device configuration backed up and documented
AV Endpoint Configuration
Encoders/Decoders:
Resolution and frame rate settings configured
Compression settings optimized for bandwidth
Audio settings (sample rate, channels) configured
Multicast addresses assigned if applicable
Latency modes set appropriately
Video Conferencing Codecs:
SIP/H.323 registration settings configured
Call server addresses and credentials entered
Bandwidth limits configured appropriately
Call quality defaults set (720p, 1080p)
Content sharing configured and tested
Camera presets programmed
Audio mixer settings optimized
Control Processors:
Control program loaded and tested
Network settings configured
Device drivers for all controlled equipment loaded
User interface pages designed and tested
Macro sequences programmed and verified
Scheduling integration configured if applicable
Testing Equipment and Tools Checklist
Ensure all testing equipment is functional and calibrated:
Network Testing Tools
Cable tester/certifier (Fluke DSX, etc.) charged and calibrated
Network cable toner and probe functional
Ethernet cable tester (basic continuity) working
Fiber optic power meter and light source if fiber work
Laptop with network tools (Wireshark, iPerf, ping, traceroute)
VoIP testing tools if applicable
IP scanner tools installed (Angry IP Scanner, Nmap)
AV Testing Equipment
Signal generator for video testing
Audio test equipment (SPL meter, signal generator, analyzer)
HDMI analyzer if troubleshooting HDCP or signal issues
Multimeter for voltage and continuity testing
Infrared thermometer for checking equipment temps
USB camera for testing UC endpoints
Test patterns and media files on USB drive
Installation Tools
Crimping tools for network cables (if field termination)
Punch-down tools for patch panels
Cable management supplies (velcro, cable ties, labels)
Label printer with appropriate labels
Power tools (drill, driver, hole saw) charged
Hand tools (screwdrivers, wrenches, Allen keys)
Ladder or lift arrangements confirmed
Cable pulling equipment if long runs
PPE (safety glasses, gloves, hard hat if required)
Phase 4: Installation Coordination and Logistics
Site Logistics Checklist
Coordinate site access and logistics before installation day:
Site Access and Permits
Building access credentials obtained (key cards, codes)
Parking arrangements for trucks and vehicles confirmed
Loading dock reserved for equipment delivery
Elevator reservations for equipment transport
After-hours access approved if needed
Visitor badges or registration process understood
Background checks completed if required for facility
Insurance certificates provided to client
Building permits pulled if required
Installation Coordination
Pre-installation meeting scheduled with facility contacts
Room access schedules coordinated (avoid disrupting occupied spaces)
Power shutdown windows scheduled if needed
Network maintenance windows scheduled for switch configuration
HVAC coordination (shutdowns for ceiling work)
Furniture moves scheduled if needed
Cleaning schedules coordinated (wait for dust to settle)
Security systems (motion sensors, cameras) disabled during work
Fire alarm systems notified if working with detectors
Team and Resource Coordination
Installation Team Preparation
Installation crew assigned with appropriate skills
Team lead designated with authority
Daily schedule created with task assignments
Safety briefing conducted covering site-specific hazards
Communication plan (radios, cell numbers) established
Tool inventory distributed to team members
Accommodation arrangements if multi-day installation
Meal plans for long installation days
Vendor and Subcontractor Coordination
Third-party vendors scheduled (electricians, low-voltage contractors)
Delivery schedules confirmed for equipment and materials
Vendor contact information compiled and distributed
Dependencies between trades identified and scheduled
Site meeting if multiple contractors on site
Phase 5: Configuration Documentation and Standards
Network Configuration Documentation
Detailed documentation prevents troubleshooting nightmares and enables future expansion:
IP Address ManagementComplete IP Address Spreadsheet:
- Complete IP address assignment for all devices
- MAC addresses recorded for DHCP reservations
- VLAN assignments for each device documented
- Switch ports mapped to devices
- Gateway addresses for each subnet
- DNS server assignments
- NTP server addresses
- Multicast addresses if applicable
VLAN Configuration Documentation
VLAN Design Documentation:
VLAN IDs and names standardized
Purpose of each VLAN clearly stated
Subnet allocations documented
Inter-VLAN routing rules documented
ACLs controlling traffic flow
QoS policies applied to each VLAN
Switch Configuration Documentation
Switch configurations exported and backed up
Port descriptions configured on all switch ports
PoE settings documented per port
QoS configuration fully documented
IGMP snooping settings recorded
PTP configuration if applicable
Spanning tree configuration documented
Link aggregation (LAG/LACP) configurations
Device Configuration Standards
Create configuration templates for consistency:
Standard Device Settings Template
Encoder/Decoder Standard Configuration:
Device Name Format: [BLDG]-[FLOOR]-[ROOM]-[TYPE][##]
IP Assignment: DHCP with reservation
VLAN: Per device type
Video Resolution: 1920x1080@60Hz
Video Codec: H.264 High Profile
Bitrate: 10 Mbps (adjustable based on quality needs)
Audio: 48kHz, 16-bit stereo
Latency Mode: Low (interactive) or Standard (distribution)
Multicast: Enabled with assigned address range
SNMP: Community "av_monitor_readonly"
NTP Server: 10.0.0.10
Admin Password: [Per security policy]
Video Conferencing Codec Standard:
Device Name: [BLDG]-[ROOM]-CODEC[##]
SIP Server: sip.company.com
SIP Domain: company.com
Username: [Room-specific]
Default Call Quality: 1080p30, 4 Mbps
Content Sharing: Enabled, 1080p30
Camera Control: VISCA over IP
Audio Modes: Auto (with AEC)
Encryption: Yes (TLS, SRTP)
Firewall Traversal: STUN/TURN configured
Phase 6: Testing and Validation Procedures
Pre-Deployment Testing Checklist
Bench testing before installation catches issues early:
Equipment Functional Testing
Power on test for all equipment (no DOA devices)
Network connectivity verified (link lights, ping response)
Firmware versions confirmed correct
Configuration restoration tested (backup/restore functions)
Factory reset procedure tested and documented
Remote management access verified (SSH, web, SNMP)
Integration Testing
Encoder to decoder testing (video and audio quality)
Control system commanding all devices successfully
Video conferencing test calls made successfully
Wireless presentation from multiple device types tested
Audio distribution tested across zones
Emergency alerts and override functions tested
On-Site Validation Checklist
Systematic validation ensures nothing is missed:
Network Infrastructure Validation
Cable connections all seated and locked
Link lights showing on all connections
Port speed negotiated correctly (1G or 10G)
VLAN assignment verified on switch ports
PoE delivery confirmed (check wattage draw)
IP addresses assigned correctly (check device displays)
Gateway reachability verified (ping test)
DNS resolution working (nslookup test)
Bandwidth testing (iPerf between endpoints)
AV System Functional Testing
Video System Testing:
Display power on/off from control system
Source switching all inputs functioning
Resolution correct for all sources
Image quality sharp and clear (no artifacts)
Audio sync verified (no lip sync issues)
Volume control functioning properly
Video Conferencing Testing:
Camera video quality and framing correct
Camera PTZ controls responding accurately
Microphone audio clear with no echo
Speaker audio clear at appropriate levels
Test call completed successfully
Content sharing from room and remote working
Firewall traversal successful
Call stability over 15+ minute test
Control System Testing:
Touch panel responsiveness acceptable
Feedback showing accurate device status
All buttons/controls functioning
Preset recall configuring system correctly
Help button and support info functioning
Error handling providing useful messages
Phase 7: AI and Automation Integration
AI-Powered Deployment Tools
Modern AV deployments leverage artificial intelligence for efficiency:
Automated Configuration Tools
AI-Assisted Configuration:
Configuration management platforms (Ansible, Puppet) prepared
Device discovery automation configured
Bulk configuration scripts tested
Template-based provisioning for standard rooms
Zero-touch provisioning configured if supported
Automated testing scripts prepared
AI Benefits:
90% reduction in manual configuration time
Consistent configurations eliminating human error
Rapid scaling for multi-room deployments
Version control for configuration management
Predictive Deployment Planning
AI-Powered Planning Tools:
Machine learning models analyzing previous deployments for time estimates
Automated scheduling optimizing installation sequences
Resource allocation suggestions based on project complexity
Risk identification flagging potential issues from design analysis
Intelligent Testing Automation
Automated Validation:
Network discovery tools auto-mapping deployed devices
Connectivity testing automated across all endpoints
Performance baseline captured automatically
Anomaly detection identifying deviations from expected behavior
Compliance checking verifying configuration standards
Phase 8: Security and Compliance Verification
Security Checklist
Network security is non-negotiable for AV systems:
Authentication and Access Control
Default passwords changed on all devices
Strong passwords complying with corporate policy
Administrative accounts limited to necessary personnel
User accounts created with minimal required privileges
802.1X authentication configured if required
Certificate-based authentication implemented
SSH keys deployed (disable password authentication)
Network Security Measures
VLANs properly isolating AV traffic
ACLs restricting unnecessary inter-VLAN communication
Firewall rules permitting only required ports/protocols
Port security enabled (MAC address limiting)
DHCP snooping enabled on access switches
ARP inspection preventing spoofing attacks
Rogue device detection configured
Encryption and Content Protection
Management interface encryption (HTTPS, SSH)
Control traffic encryption (TLS)
Media stream encryption (SRTP) if required
HDCP configured for protected content
WPA2/WPA3 for wireless presentation
VPN configured for remote management
Compliance Documentation
Security assessment completed and documented
Vulnerability scan performed and issues remediated
Compliance checklist (HIPAA, PCI, etc.) completed
Audit logs enabled and retention configured
Data protection policies implemented for recordings
Privacy compliance (camera/mic indicators, consent)
Physical security (equipment locks, cable security)
Phase 9: Documentation Handoff and Training
Final Documentation Package Checklist
Complete documentation is essential for long-term success:
Technical Documentation
As-built network diagrams (physical and logical)
Updated floor plans with final equipment locations
Complete IP address spreadsheet with all assignments
Switch configurations backed up and documented
Device configurations for all AV equipment
Cable schedule with all connections documented
Rack elevation drawings showing final installation
Control system programming backup and documentation
Firmware versions list for all equipment
Password vault with all credentials securely stored
Operations Documentation
User guides with screenshots and procedures
Quick start guides for each room type
Troubleshooting flowcharts for common issues
Maintenance procedures and schedules
Warranty information and support contacts
Parts inventory list and reorder information
Training materials for end users
Support escalation procedures documented
Training Completion Checklist
End-user training conducted for all room types
IT staff training on system architecture and troubleshooting
Facilities training on physical maintenance
Training materials provided (videos, guides, job aids)
Training sign-off sheets collected
Advanced training scheduled if needed
Phase 10: Project Closeout and Handoff
Acceptance Testing Checklist
Client acceptance formalizes project completion:
Functional Acceptance Testing
Test scenarios executed per acceptance criteria
Performance benchmarks met (latency, quality, reliability)
All punch list items completed or scheduled
Client walkthrough conducted
Sign-off documentation obtained
Satisfaction survey completed
Warranty and Support Setup
Warranty registration completed for all equipment
Support contracts activated
Monitoring enrolled in management platform
Alerting configured for critical issues
Help desk integration if applicable
Remote access configured for support
Spare parts delivered and inventoried
Post-Deployment Optimization
30-day follow-up scheduled
Usage analytics reviewed for optimization opportunities
User feedback collected and addressed
Performance tuning based on real-world usage
Configuration tweaks implemented
Additional training provided if gaps identified
AI-Enhanced Future Deployment Strategies
Emerging AI Technologies for AV Integration
Artificial intelligence is revolutionizing AV deployment workflows:
AI-Powered Design Validation
Machine Learning Applications:
Automated design review identifying potential issues before deployment
Bandwidth prediction models based on room usage patterns
Optimal equipment placement suggestions using computer vision analysis
Interference prediction for wireless systems
Cable routing optimization minimizing costs and maximizing performance
Predictive Installation Planning
AI-Driven Scheduling:
Installation time prediction based on room complexity and historical data
Resource optimization assigning teams based on skill requirements
Risk assessment identifying high-risk phases of deployment
Supply chain optimization predicting lead times and suggesting alternatives
Intelligent Commissioning
Automated System Validation:
Self-configuring systems that automatically discover and configure devices
AI-powered testing executing comprehensive test suites automatically
Anomaly detection identifying configuration errors before impacting users
Performance optimization automatically tuning system parameters
Predictive maintenance scheduling based on usage patterns and device health
Frequently Asked Questions
How long before deployment should I start the checklist process?
Start 4-6 weeks before for small projects (<5 rooms), 8-12 weeks for medium projects (5-20 rooms), and 12+ weeks for large enterprise deployments. Critical path items like network assessment, IT coordination, and equipment ordering require substantial lead time.
What's the most common deployment mistake integrators make?
Insufficient IT coordination causes 60% of deployment problems. Failing to verify network readiness, VLAN configuration, and firewall rules before installation day results in costly delays and emergency troubleshooting sessions.
Should I pre-configure all equipment or configure on-site?
Pre-configure 80-90% of settings in your shop. This dramatically reduces on-site time and allows bench testing to catch issues early. Only site-specific settings (IP addresses if not using DHCP, room names) need on-site configuration.
How much extra time should I budget for unexpected issues?
Add 20-30% contingency time for first-time deployments at a site. After establishing processes and relationships with IT, reduce to 10-15%. Murphy's Law applies—something will require troubleshooting.
What testing equipment is absolutely essential?
Minimum essential: cable certifier (Fluke or equivalent), laptop with network tools (Wireshark, iPerf), basic multimeter, and HDMI test cable. These cover 90% of troubleshooting scenarios. Advanced tools become necessary for complex AV-over-IP or audio DSP installations.
How do I handle client requests for changes during installation?
Change order process is essential. Document all requested changes, provide time and cost impact, obtain written approval before proceeding. Scope creep destroys profitability—protect your project with formal change management.
What documentation format works best for handoff?
Digital documentation packages stored in cloud-accessible folders (SharePoint, Google Drive) with organized structure. Include both source files (AutoCAD, Visio) and PDFs for viewing. Hyperlinked index document makes navigation easy.
Conclusion
Successful AV network deployments are 80% preparation and 20% execution. The comprehensive pre-deployment checklist outlined in this guide provides AV integrators, consultants, and system designers with a battle-tested framework for consistently delivering professional installations that meet technical specifications, stay on schedule, remain within budget, and exceed client expectations.
The difference between profitable projects and nightmarish deployments lies entirely in systematic preparation: thorough site surveys, comprehensive network assessment, detailed IT coordination, meticulous equipment pre-configuration, proper testing equipment preparation, complete documentation, and realistic contingency planning. Each checklist item represents lessons learned from thousands of deployments—shortcuts inevitably lead to costly rework, frustrated clients, and eroded profit margins.
As AV systems grow increasingly complex with networked architectures, cloud integration, and AI-powered features, the importance of structured pre-deployment processes only intensifies. Modern AV integrators must combine traditional audiovisual expertise with networking knowledge, IT collaboration skills, and project management discipline to succeed in this evolved landscape.
AI-powered tools are transforming deployment efficiency—automated configuration, predictive planning, and intelligent testing dramatically reduce manual effort while improving consistency and reliability. Forward-thinking integrators adopting these technologies gain competitive advantages in speed, accuracy, and scalability.
The checklist approach documented here isn't merely a collection of tasks—it's a quality assurance framework ensuring nothing is overlooked, a communication tool aligning teams and stakeholders, and a continuous improvement system capturing lessons learned for future projects. Organizations that implement systematic pre-deployment checklists report 70%+ reduction in installation issues, 40%+ improvement in project timelines, and significantly higher client satisfaction scores.
For AV professionals serious about delivering excellence consistently, this comprehensive pre-deployment checklist becomes the foundation of operational success. Customize it for your specific markets and project types, but maintain the discipline of systematic validation before every deployment. The investment in preparation pays dividends in project profitability, client relationships, team morale, and professional reputation.
Every successful AV network deployment begins long before equipment arrives on site—it begins with comprehensive planning, validation, and preparation guided by a thorough checklist ensuring technical excellence and operational efficiency from concept through handoff.
