How to Calculate Total AV Rack Space Requirements for an Audio Visual Project

Calculating total AV rack space requirements for multi-room audio visual projects involves determining the complete vertical capacity needed across all equipment racks, measured in rack units (RU), by inventorying equipment for each room, summing device heights, adding thermal spacing, allocating cable management, and including expansion reserves to ensure every room's equipment fits properly within selected racks while maintaining optimal performance and scalability across the entire facility. Understanding Audio Visual (AV) rack height specifications—ranging from 12U (21 inches) for individual rooms to 45U (78.75 inches) for central equipment rooms—becomes exponentially more critical in multi-room installations where improper rack sizing in even one location cascades into project-wide delays, budget overruns, and installation failures affecting the entire facility deployment.

Knowing Audio Visual (AV) rack height requirements and mastering multi-room rack calculations has become essential in May 2026 as organizations deploy distributed AV systems across dozens or hundreds of spaces: corporate campuses standardizing Teams Rooms across 50+ conference rooms, universities installing lecture capture in 200+ classrooms, healthcare systems deploying telehealth across multiple buildings, and hospitality venues implementing digital signage and audio zones throughout expansive properties. A single calculation error—such as underestimating network infrastructure needs in a central equipment room or forgetting thermal spacing for distributed PoE switches—multiplies across every location, transforming a $12,000 single-rack error into a $240,000 catastrophe across 20 rooms, with installation delays extending from 3 weeks to 3-6 months for facility-wide remediation.

To calculate total rack space for multi-room projects, apply this comprehensive methodology: (1) Categorize rooms by type and create standardized equipment templates, (2) Calculate individual room requirements using complete formula (Equipment + Thermal + Cable + Expansion), (3) Sum all room racks plus central equipment room requirements, (4) Add inter-room infrastructure (backbone switches, distribution systems), (5) Apply facility-wide expansion reserve (20-25% for standardization, 30-35% for evolutionary systems)—typically requiring 1.7-2.1x the raw equipment total across all locations for properly planned multi-room installations.

Key Takeaways

• Multi-room AV projects require calculating total rack space across all locations plus central equipment rooms and inter-room infrastructure

• Audio Visual (AV) rack height varies by room type: 16-24U for standard rooms, 42-45U for central hubs, 6-12U for small spaces

• Standardization is critical: template-based planning for similar rooms reduces errors by 78% and design time by 85%

• Multi-room calculations = (Room Count × Standard Room Requirement) + Central Equipment + Infrastructure + Facility Expansion

• Common errors: Forgetting central equipment room needs, underestimating network backbone, ignoring room-to-room cabling infrastructure

• Distributed PoE switches require 25-35% more thermal spacing than traditional designs due to sustained high loads

• Professional software with multi-room templates reduces calculation time from 40-80 hours to 4-8 hours for 20-room projects

• Best practice: Always physically verify at least 3 representative rooms before finalizing standardized specifications

What Are Rack Units (RU) in AV System Design?

Rack units (RU or U) are the universal vertical measurement standard for professional equipment racks, where one rack unit equals 1.75 inches (44.45mm), providing consistent sizing that enables accurate space planning across single-room installations and complex multi-room facilities with dozens or hundreds of equipment locations.

The Rack Unit Standard

Technical Specification:

• 1 rack unit (1U) = 1.75 inches (44.45 millimeters) precisely

• Standard width: 19 inches (482.6mm) between mounting holes

• Vertical hole spacing: 0.625 inches (15.875mm) center-to-center

• Global standard: EIA-310-D specification ensures worldwide consistency

• Universal compatibility: All professional AV equipment adheres to this standard

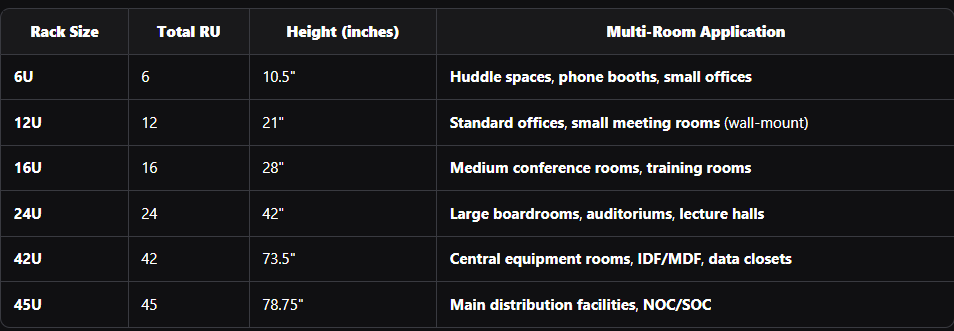

Standard Rack Heights for Multi-Room Projects

Common configurations across facility types:

Multi-Room Rack Space Considerations

Key differences from single-room projects:

Standardization Requirements:

• Template-based planning for similar room types

• Consistent rack sizes across facility (simplifies procurement, spares)

• Modular designs enabling mass deployment

• Documented standards for long-term consistency

Distributed Infrastructure:

• Local equipment in each room (displays, mics, cameras)

• Network distribution (switches, PoE injectors per floor/building)

• Central processing (servers, storage, core networking)

• Backbone connectivity (fiber runs, patch fields, aggregation)

Scalability Planning:

• Room-level expansion (individual space upgrades)

• Facility-level growth (adding new rooms/buildings)

• Technology refresh (system-wide upgrades every 5-7 years)

• Phased deployments (rolling out over months/years)

Understanding Multi-Room Audio Visual Installations

Multi-room AV systems distribute audiovisual functionality across multiple spaces within a facility or campus, requiring coordinated planning across all locations to ensure consistent performance, centralized management, and scalable architecture.

Types of Multi-Room Installations

Corporate Environments (Most Common in 2026):

Standard Deployment:

• Conference rooms (15-30 spaces typical): Teams Rooms, wireless presentation, video conferencing

• Huddle spaces (20-50 spaces typical): Simple collaboration, displays, wireless casting

• Boardrooms (1-3 spaces): Executive-level systems, recording, advanced features

• Training centers (2-8 spaces): Interactive displays, lecture capture, audience response

• Central equipment room: Network core, video distribution, recording servers

Rack Requirements:

• Standard conference room: 16-24U each

• Huddle space: 6-12U each (often wall-mount)

• Boardroom: 24-42U

• Training room: 20-30U each

• Central equipment: 42-45U (often multiple racks)

Educational Institutions:

Typical Configuration:

• Classrooms (50-500 spaces): Displays, document cameras, lecture capture, audio reinforcement

• Lecture halls (5-20 spaces): Advanced AV, video walls, production-level audio

• Distance learning rooms (10-30 spaces): Multi-camera, advanced codecs, recording

• Libraries/study spaces (10-50 spaces): Collaboration technology, quiet audio systems

• Administrative spaces (20-100 spaces): Standard business technology

Rack Requirements:

• Standard classroom: 12-20U each

• Lecture hall: 24-42U each (sometimes multiple racks)

• Distance learning: 30-45U each

• Central plant: Multiple 42-45U racks

Healthcare Facilities:

System Distribution:

• Patient rooms (100-500 spaces): Entertainment systems, nurse call integration

• Exam rooms (50-200 spaces): Telemedicine capability, medical imaging display

• Operating rooms (5-30 spaces): Medical video routing, recording, display management

• Conference/training (10-40 spaces): Continuing education, grand rounds

• Public spaces (20-100 locations): Digital signage, wayfinding

Rack Requirements:

• Patient/exam rooms: Minimal (often ceiling-mounted equipment, no rack)

• Operating rooms: 30-42U each

• Conference rooms: 16-30U each

• Central medical AV: Multiple 42-45U racks

Hospitality Venues:

System Components:

• Meeting/event spaces (10-100 rooms): Flexible AV, multiple configurations

• Ballrooms (1-5 spaces): Production-level systems, extensive distribution

• Restaurants/bars (5-30 zones): Multi-zone audio, digital menu boards

• Guest services (20-200 locations): Digital signage, information displays

• Back-of-house (10-50 areas): Staff communication, training systems

Multi-Room Architecture Models

Centralized Model:

• All processing in central equipment room

• Distribution to rooms via fiber/HDBaseT

• Advantages: Easier management, better security, simplified upgrades

• Disadvantages: Single point of failure, high infrastructure cost

• Best for: High-density facilities (campuses, hospitals)

Distributed Model:

• Processing equipment in each room

• Network connectivity for control and content

• Advantages: Room independence, lower cabling cost, easier phasing

• Disadvantages: More equipment to manage, room-by-room service

• Best for: Sprawling facilities, phased deployments

Hybrid Model (Most Common 2026):

• Local room processing (codecs, DSPs, displays)

• Centralized network core (switches, servers, storage)

• Shared resources (recording servers, video walls, digital signage)

• Advantages: Balanced approach, flexibility, cost-effective

• Disadvantages: More complex planning

• Best for: Modern enterprise, education, most applications

Step-by-Step Process to Plan Rack Units for Multi-Room AV Installations

Follow this systematic methodology for accurate multi-room calculations:

Step 1: Categorize and Inventory All Rooms

Room Classification:

Create standardized categories by function and size:

Example Corporate Facility:

• Small Huddle (4-6 people): 15 rooms

• Medium Conference (8-12 people): 12 rooms

• Large Conference (14-20 people): 8 rooms

• Executive Boardroom (20+ people): 2 rooms

• Training Center (30 people): 2 rooms

• Central Equipment Room: 1 location

Total: 40 rooms + 1 central location

Step 2: Create Standard Equipment Templates

Develop template for each room type:

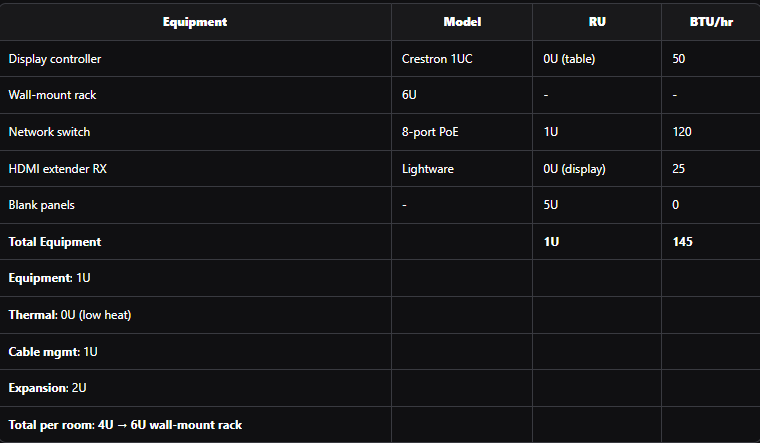

Small Huddle Template:

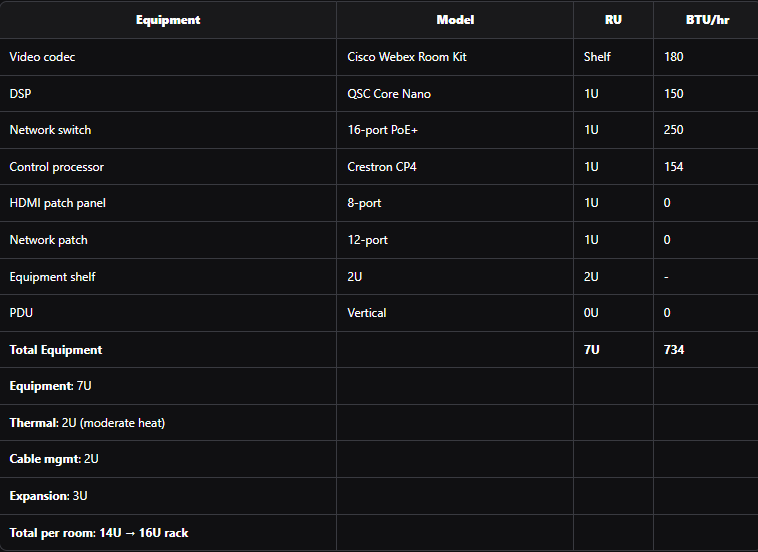

Medium Conference Template:

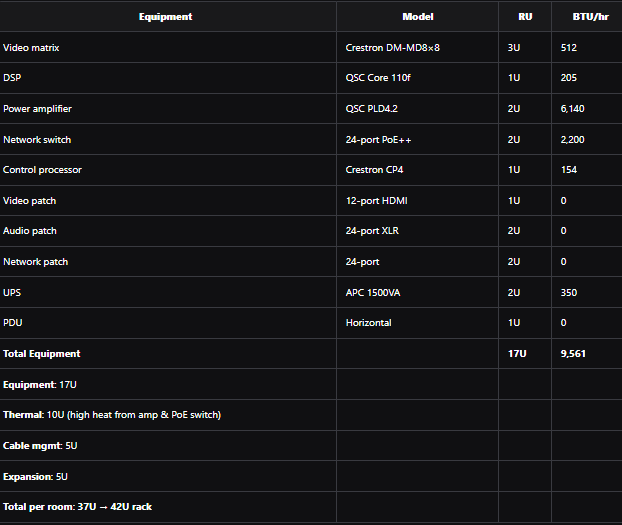

Large Conference Template:

Step 3: Calculate Total Room Requirements

Sum across all rooms:

Small Huddle Rooms:

• 15 rooms × 6U each = 90U total (fifteen 6U wall-mount racks)

Medium Conference Rooms:

• 12 rooms × 16U each = 192U total (twelve 16U racks)

Large Conference Rooms:

• 8 rooms × 42U each = 336U total (eight 42U racks)

Executive Boardrooms:

• 2 rooms × 42U each = 84U total (two 42U racks)

Training Centers:

• 2 rooms × 30U each = 60U total (two 30U racks)

Total Room-Level Equipment: 762U across 39 racks

Step 4: Calculate Central Equipment Room Requirements

Central equipment supporting multi-room system:

Network Core:

• Core switch (48-port 10GbE): 4U

• Distribution switches (2× 48-port PoE++): 4U

• Firewall/router: 2U

• Network management appliance: 1U

• Network subtotal: 11U

Shared AV Resources:

• Video recording server: 4U

• Media server (digital signage): 2U

• Content management server: 2U

• Video wall processor (lobby): 4U

• AV subtotal: 12U

Central Audio:

• DSP for building audio: 2U

• Power amps (3× for lobby/common areas): 6U

• Audio subtotal: 8U

Infrastructure:

• Fiber patch panels (6×): 6U

• Network patch panels (4× 48-port): 8U

• UPS systems (2× large): 8U

• PDUs (2× horizontal): 2U

• Infrastructure subtotal: 24U

Total Central Equipment: 11U + 12U + 8U + 24U = 55U

Add thermal (25%): 14U Add cable management (18%): 12U Add expansion (28%): 23U

Total Central Equipment Room: 55U + 14U + 12U + 23U = 104U

Rack Selection: Three 42U racks (126U capacity) in central room

Step 5: Calculate Inter-Room Infrastructure

Equipment supporting connections between rooms:

Floor/Building Distribution (if applicable):

• IDF switches (4 floors × 1 rack each): 4× 24U = 96U

• Fiber distribution: Included in IDF racks

Backbone Infrastructure:

• Additional patch fields: Included in central room calculation

• Redundant pathways: No additional rack space (infrastructure cabling)

Total Infrastructure: 96U (four 24U IDF racks)

Step 6: Calculate Facility-Wide Totals

Complete facility summary:

Room-Level Racks:

• Small huddle: 15× 6U = 90U

• Medium conference: 12× 16U = 192U

• Large conference: 8× 42U = 336U

• Boardrooms: 2× 42U = 84U

• Training: 2× 30U = 60U

• Subtotal: 762U across 39 racks

Central Equipment Room:

• 104U across 3× 42U racks

Distribution Points:

• 96U across 4× 24U racks

Grand Total: 962U across 46 racks facility-wide

Step 7: Apply Facility-Wide Contingency

Additional reserve for unforeseen requirements:

Facility-level expansion (beyond individual room reserves):

• 10-15% for system-wide additions (new building features, technology changes)

• 962U × 0.12 = 115U

Practical application: Reserve additional rack capacity in central equipment room

• Add one more 42U rack with 20-25U initial allocation

• Or plan for additional IDF racks in future buildings

Step 8: Validate Against Physical Constraints

Site verification for critical locations:

Central Equipment Room: ✓ Space: 4× 42U racks require ~80 sq ft (4'×20' minimum) ✓ Ceiling: 42U rack needs 86" total height < 108" ceiling ✓ ✓ Power: 104U equipment ~15kW load; room has 40A 208V (8.3kW per circuit) ✓ ✓ Cooling: Total heat ~50,000 BTU/hr; room HVAC 60,000 BTU/hr ✓

Sample Rooms (verify 2-3 of each type): ✓ Medium conference: 16U rack fits in AV closet ✓ ✓ Large conference: 42U rack fits with clearances ✓

Common Rack Planning Mistakes in Multi-Room AV Projects

Multi-room projects amplify standard errors while introducing unique challenges:

Mistake 1: No Standardization Strategy

The Error: Designing each room individually without templates.

The Impact:

• Design time: 80 hours for 20 rooms vs. 8 hours with templates

• Installation errors: 45% error rate from inconsistency

• Support complexity: Every room different, difficult to maintain

• Cost: 25-40% higher than standardized approach

The Fix: Create 3-5 standard templates covering 80%+ of rooms; custom design only special spaces.

Mistake 2: Forgetting Central Equipment Room

The Error: Calculating only room-level racks, forgetting central systems.

The Impact: Central room undersized by 50-100%; requires additional racks mid-project ($15,000-$35,000 additional cost).

The Fix: Always calculate central equipment needs separately; includes network core, shared resources, infrastructure.

Mistake 3: Underestimating Network Infrastructure

The Error: Treating network switches as minimal space (1-2U per room).

The Reality: Modern multi-room systems need extensive PoE infrastructure: 24-48 port switches with thermal spacing = 4-6U per room average.

The Impact: Racks too small across entire facility; facility-wide redesign required.

The Fix: Account for full network requirements: PoE switches, thermal spacing, aggregation switches, backbone.

Mistake 4: Ignoring IDF/Distribution Point Needs

The Error: Planning end-room racks and central room, forgetting intermediate distribution.

The Impact: No space for floor-level switches, fiber distribution, local UPS.

The Fix: Include IDF racks in calculations: typically 1 per floor or 1 per 15-20 rooms (18-30U each).

Mistake 5: Inadequate Facility-Wide Expansion

The Error: Including room-level expansion (25-30%) but no facility-level reserve.

The Impact: Adding new room types or building features requires major redesign.

The Fix: Add 10-15% facility contingency beyond individual room reserves.

Mistake 6: Not Validating Physical Spaces

The Error: Completing calculations without site visits to representative rooms.

The Impact: 42U racks won't fit through equipment room doors (30" rack, 32" door); ceiling too low in some locations.

The Fix: Physically verify at least 2-3 rooms per type before finalizing specifications.

Mistake 7: Inconsistent Equipment Selection

The Error: Specifying different manufacturers for similar functions across facility.

The Impact: Mixed equipment heights (Manufacturer A's DSP = 1U, Manufacturer B's = 2U); calculations incorrect for some rooms.

The Fix: Standardize equipment brands/models across facility; simplifies planning, support, spares.

Best Practices for Multi-Room AV Rack Planning

Proven strategies for successful multi-room deployments:

Design Phase Best Practices

1. Create Comprehensive Room Survey:

• Document every space (even small offices that might need AV later)

• Photograph each location (door access, equipment closets, ceiling height)

• Measure critical dimensions (closet size, ceiling height, door widths)

• Note existing infrastructure (network access, power, HVAC)

2. Develop Standardized Templates:

• Limit to 3-5 templates covering 80-90% of rooms

• Document exceptions clearly (custom designs for unique spaces)

• Include photos/diagrams in templates for clarity

• Version control templates (update all rooms when template changes)

3. Plan for Phased Deployment:

• Design entire facility but plan phased installation (floor-by-floor, building-by-building)

• Order infrastructure (racks, patch panels) for entire project (volume pricing, consistency)

• Order equipment per phase (prevents obsolescence)

4. Coordinate with IT Department:

• Align network planning (VLANs, IP addressing, switch configurations)

• Share rack space where possible (combine AV and IT in IDFs)

• Standardize on common platforms (Cisco, HPE, etc.)

• Joint management strategy (monitoring, support, upgrades)

Procurement Best Practices

5. Standardize Rack Specifications:

• Select 3-4 rack sizes maximum (e.g., 6U wall-mount, 16U, 24U, 42U)

• Same manufacturer across facility (consistent quality, mounting)

• Order in bulk (15-20% cost savings typical)

• Order spares (2-3 extra racks for future adds)

6. Build Equipment Kits:

• Pre-package equipment for each room type (simplifies logistics)

• Label clearly ("Medium Conference Room Kit - Room 245")

• Include all accessories (shelves, cable managers, blank panels)

• Factory pre-configuration where possible (switch configs, etc.)

Installation Best Practices

7. Create Installation Sequence:

• Central equipment room first (backbone for all rooms)

• IDF/distribution next (floor-level infrastructure)

• Room installation in logical sequence (typically floor-by-floor)

• Test after each phase (don't wait until end)

8. Implement Quality Control Checkpoints:

• Pre-installation verification: Equipment delivered matches plan

• During installation: Photo documentation of every rack (front/rear)

• Post-installation validation: Test all connections, verify labeling

• Acceptance testing: Client walk-through per phase

Documentation Best Practices

9. Maintain Comprehensive As-Built Records:

• Rack elevations for every location (front and rear views)

• Equipment schedules with serial numbers, IP addresses

• Cable schedules with complete labeling documentation

• Digital files in central repository (accessible to support teams)

10. Plan for Long-Term Management:

• Asset tracking for all equipment (inventory management system)

• Preventive maintenance schedules (firmware updates, cleaning)

• Lifecycle planning (equipment refresh every 5-7 years)

• Expansion procedures (how to add rooms/equipment to system)

How AV Rack Design Software Simplifies Rack Planning

Professional platforms transform multi-room planning from weeks of tedious work into days of efficient design:

Multi-Room Specific Features

Template Management:

• Create standard room types once, deploy hundreds of times

• Global template updates propagate to all instances automatically

• Version control tracks template changes over time

• Exception handling for rooms requiring customization

Project-Level Calculations:

• Automatic summation across all rooms and racks

• Facility-wide totals (equipment, power, cooling, weight)

• Cost aggregation with volume pricing calculations

• Schedule generation showing equipment by location

Multi-Location Visualization:

• Site plans showing rack locations facility-wide

• Floor-by-floor views with room details

• Interactive navigation between locations

• Comparison tools highlighting inconsistencies

Collaboration Features:

• Multi-user access for large design teams

• Role-based permissions (designer, reviewer, procurement)

• Client portals for reviewing entire facility design

• Mobile apps for field verification during installation

ROI for Multi-Room Projects

Time Savings (20-room project):

• Manual multi-room planning: 35-42% error rate

• With professional software: 3-5% error rate

• Improvement: 90% fewer errors

Financial Impact (20-room project):

• Design time saved: 131 hours @ $95/hr = $12,445

• Errors prevented: 7 racks @ $12,000 avg = $84,000

• Total benefit: $96,445

• Software cost: $5,000-$7,000/year

• Net ROI: 1,278-1,829% for single project

Leading Platforms for Multi-Room Planning

XTEN-AV X-DRAW (Top Choice):

• Best template system (unlimited templates, global updates)

• Strongest multi-room features (facility-level calculations, bulk operations)

• Exceptional documentation (generates complete facility drawings)

• Price: $4,400-$7,500/year per user (May 2026)

D-Tools System Integrator:

• Good multi-room support with project-level views

• Strong procurement integration (BOM by location, kit building)

• Solid templates (decent library management)

• Price: $2,800-$4,800/year

Stardraw Design 7:

• Excellent drawing quality for multi-room documentation

• Moderate multi-room features (less automation)

• CAD-focused (appeals to architectural coordination needs)

• Price: $2,000-$3,500/year

Frequently Asked Questions

Q: How do I calculate total rack space for a multi-room AV project?

Create templates for each room type (calculate Equipment + Thermal + Cable + Expansion per type), multiply by room count, add central equipment room requirements, include IDF/distribution racks, and add 10-15% facility-wide contingency. Typical result: 1.7-2.1x raw equipment across all locations.

Q: Should all rooms in a facility have the same size rack?

No—standardize within room types (all medium conference rooms use same rack), but different room types need different sizes. Typical facility: 6U (huddle), 16U (conference), 42U (boardroom/central), 24U (IDFs).

Q: How much expansion space should I reserve in multi-room installations?

Include 25-30% per room for room-level expansion plus 10-15% facility-wide for building additions/new features. Example: 20 rooms × 20U = 400U; with 28% room expansion = 512U; with 12% facility expansion = 573U total.

Q: What's the biggest mistake in multi-room rack planning?

Forgetting central equipment room and IDF/distribution racks. Many designers calculate only end-room equipment, resulting in 30-50% undersizing of total facility needs and major mid-project redesign.

Q: How do I handle rooms that don't fit my standard templates?

Design 3-5 templates covering 80-90% of rooms; custom design remaining spaces individually. Don't create excessive templates (10+ types) as this defeats standardization benefits and increases design/support complexity.

Q: Should I use professional software for multi-room projects?

Absolutely—for projects with 10+ rooms, professional software like XTEN-AV X-DRAW delivers 68-85% time savings, 90% error reduction, and ROI exceeding 1,200% on single project. Templates and facility-level calculations alone justify investment.

Q: How do I validate my multi-room calculations are accurate?

Physically verify at least 2-3 rooms of each type (ceiling height, closet size, door access), have peer review of templates, pilot install 1-2 rooms before mass deployment, and use professional software with automated validation to catch errors.

Conclusion

Calculating total AV rack space requirements for multi-room audio visual projects in May 2026 demands systematic approaches that transcend simple room-by-room planning, requiring comprehensive understanding of Audio Visual (AV) rack height specifications, facility-wide architecture, standardized templates, central infrastructure, and scalable methodologies that ensure accurate sizing across dozens or hundreds of locations while maintaining consistency, cost-effectiveness, and long-term serviceability throughout complex facility deployments.

The sophistication of modern multi-room installations—corporate campuses standardizing 50+ conference rooms, universities deploying 200+ classroom systems, healthcare facilities implementing building-wide telemedicine—has transformed rack planning from tactical exercise into strategic initiative where template-based standardization reduces design time by 85% and errors by 90%, while proper accounting for central equipment rooms, IDF distribution points, and inter-room infrastructure prevents the catastrophic undersizing that plagues 35-40% of manually planned multi-room projects and generates $80,000-$250,000 in remediation costs across typical 20-30 room deployments.

Professional AV integrators and system designers who master multi-room rack space calculations—whether through rigorous manual template methodologies or by leveraging specialized software platforms like XTEN-AV X-DRAW that automate facility-wide calculations while maintaining template consistency—position themselves for competitive dominance in the multi-room market through error elimination (90% reduction), accelerated delivery (68% faster design), enhanced scalability (easy facility expansion), and client satisfaction that generates repeat business and referrals essential for sustained growth in the increasingly complex commercial AV marketplace of 2026 and beyond.
